Discreet Log #21: Coming Soon: Image Previews and Links!

26 Nov 2021

Welcome to Discreet Log! A fortnightly technical development blog to provide an in-depth look into the research, projects and tools that we work on at Open Privacy. For our twenty-first post Erinn Atwater talks about upcoming quality-of-life improvements in Cwtch.

Cwtch Beta 1.5, slated for release in mid-December, includes a number of quality-of-life improvements that users have been asking for. Some are even already available in nightlies, such as the clickable links experiment. This post will give you a small preview of what’s coming and, in Discreet Log tradition, talk about some of the technical choices we made and try to answer questions you might have about the implementation.

Image Previews

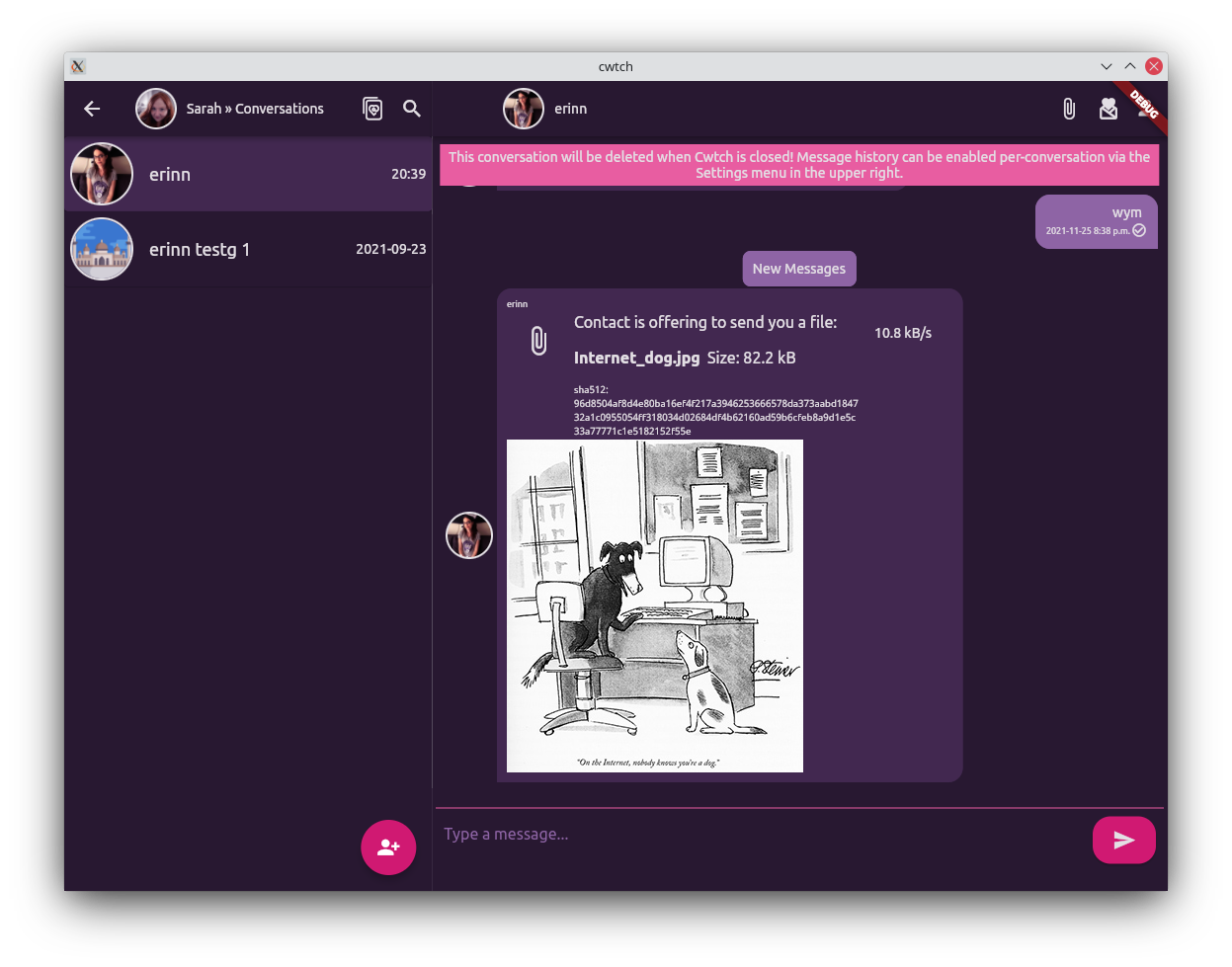

Screenshot of a Cwtch conversation with a previewed image message

One of the most-requested features for Cwtch is inline image previews, and we’re excited that it’s about to become a reality! Once it becomes available, this will be an opt-in feature available under the Experiments gate in the global settings menu (although we’re considering allowing you to turn it on per-conversation for trusted contacts).

Built on the back of filesharing in Cwtch 1.3, image previews are keyed by the suggested filename’s extension (and no, we’re not interested in using MIME types or magic numbers) and advertised size. If enabled, the preview system will automatically download shared images to a configured downloads folder and display them as part of the message itself. (Due to limitations on Android, they’ll go to the app’s private storage cache, and give you the option to save them elsewhere later instead.) The file size limit is TBD but will obviously be much lower than the overall filesharing size limit, which is currently 10 gigabytes.

For now, we only support single-image messages, and any image editing/cropping will have to be done in a separate application. As we mention in the filesharing FAQ, image files also frequently contain significant hidden metadata, and you should only share them with people you trust.

Profile Pictures

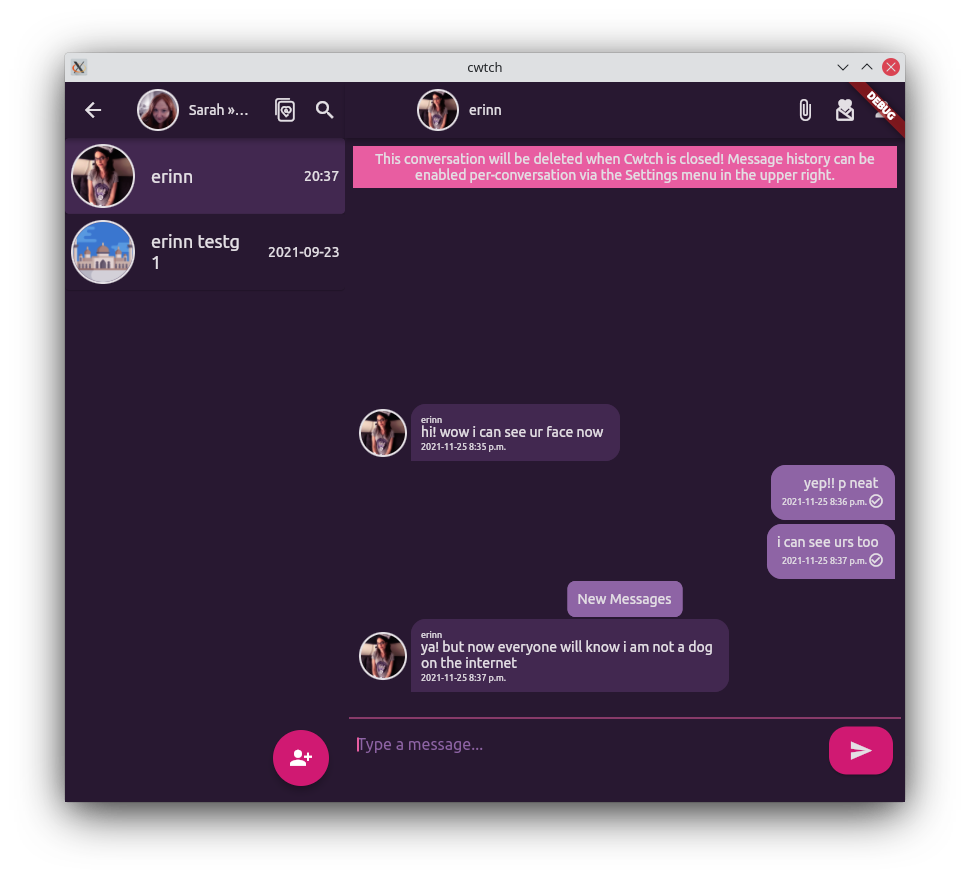

Screenshot of a Cwtch conversation with custom avatar pictures

Now that we have filesharing and auto-downloaded image previews, the natural next step in the progression is to support custom profile images, allowing you to finally swap away from the default fantasy cartoons we’ve been using up until now.

Custom avatars will require two things: having the Image Previews experiment enabled from the Experiment settings menu, and having the user accepted as a contact in your contact list. Unknown users (e.g., people in a group conversation that you haven’t added) will still display their default fantasy avatar as a placeholder, even with Image Previews enabled. This is similar to how custom names work now, where you only see an onion address associated with messages from unadded contacts.

Custom profile pictures will be subject to the same limitations as image previews.

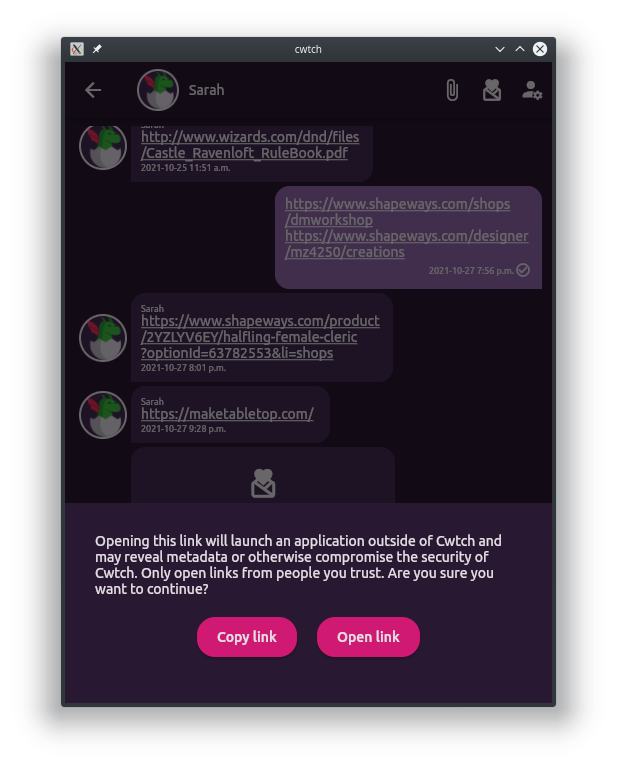

Screenshot of a Cwtch conversation with clickable links and a dialog asking if a clicked link should be copied or opened directly in a web browser

With huge thanks to a contribution from volunteer Nima Boscarino, Cwtch nightlies now have experimental support for clickable hyperlinks! Users running supported versions can find the setting to enable it under the Experiments gate in the global settings menu.

We were initially hesitant to introduce link parsing into Cwtch for security and privacy reasons, but between the flutter_linkify plugin allowing us to add a custom prompt before links are sent to external applications (or give you the choice of just copying the link instead), and our FuzzBot letting us look for parsing bugs, we’ve decided we’re comfortable enough to make it an opt-in feature. Remember that Cwtch is still in beta, and you should limit the number of Experimental features you enable, especially if you’re using it to have conversations with strangers or other potentially untrusted contacts.

Currently, the “open in browser” function uses the system’s default browser. In the near future, we plan to add a setting for specifying any browser (or other binary) you want, which would enable you to e.g. configure links to go straight to Tor Browser, so you can use Cwtch to send .onion links to your friends more easily. :)

Quality of life

For 1.5, we’ve also spent some time smoothing out the core behaviour of the message pane, which is one of those hard-to-quantify but experience-defining aspects of using any messenger app. We’ve fixed several bugs around autoscrolling and loading to the most-recent position in a conversation, brought back the “new messages” divider-line, and fixed some bugs around message ordering. Sarah has also spent significant time working on our new storage backend, which has already resulted in performance improvements across the board, and will allow us to further improve on conversation history loading times on Android in the near future. More on that in the next edition of Discreet Log!

Thanks to our volunteer translators, Cwtch 1.5 will also be the first version released with a complete Russian translation! We’ll be updating the Acknowledgements pane of Cwtch in the coming weeks to thank our translators for their invaluable contributions to making Cwtch more accessible (on an opt-in basis, naturally). If you’d like to volunteer to help translate, email team@cwtch.im or otherwise contact an Open Privacy team member to get added to our team on Lokalise, or, if you’re up for it, submit a PR on our l10n files.
